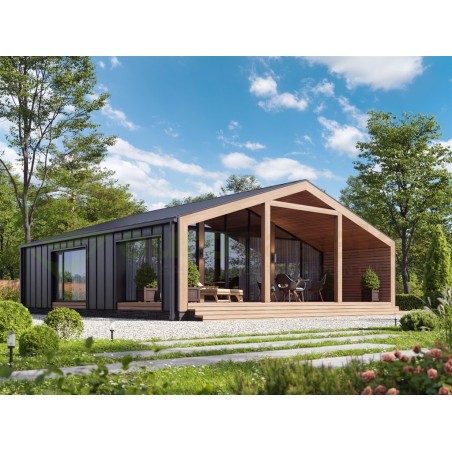

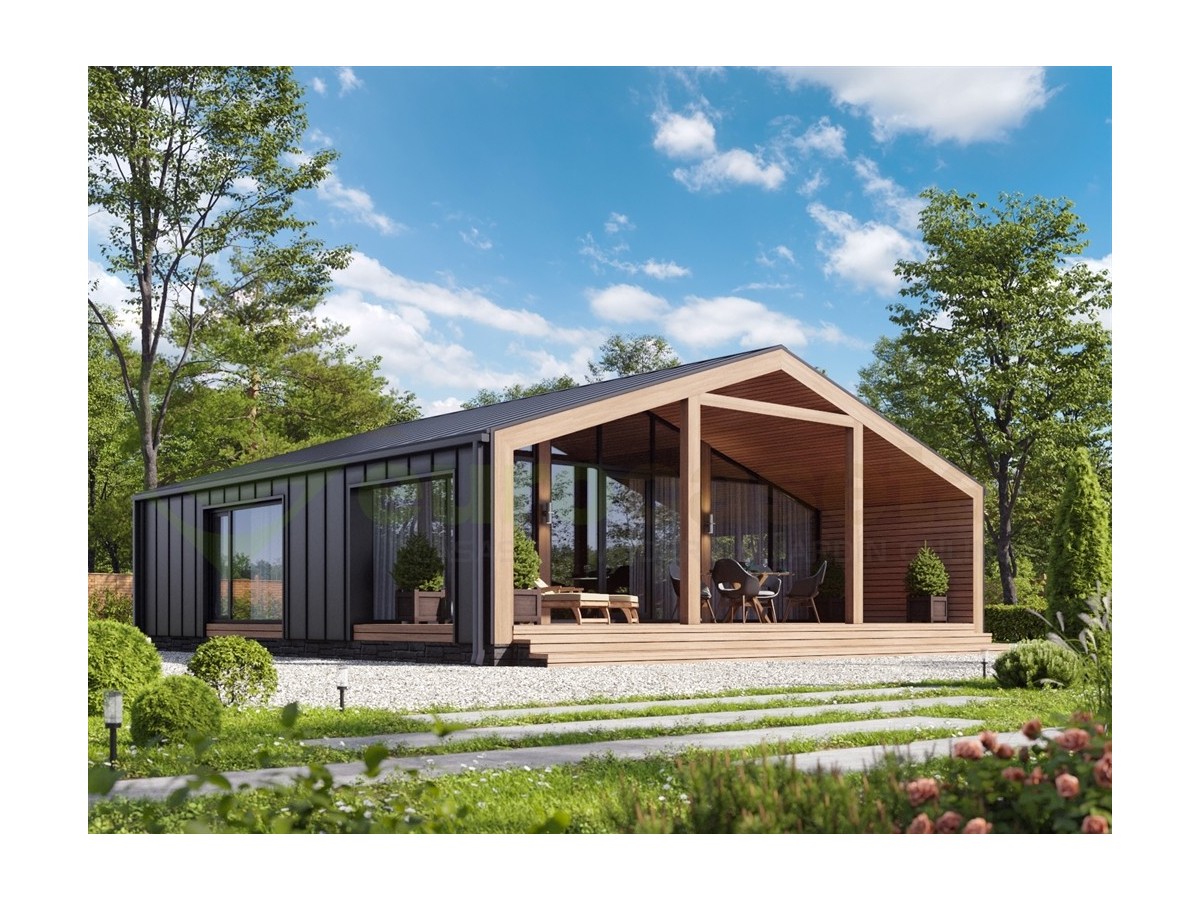

Barnyhouse "LIPARI , 84 m2"

House

• Calculated designed in a mounting up pylons (the pylons and the

Land preparation is not included in price)

• Bytum AS750 Rothoblaas in the area of the pylons

• Membrane transpir R110

• OSB3 EGGER 15 mm

• Wooden timbered 150x45 mm C / 625 mm with fireproof treatment

• Knauff mineral wool unifit035-150 mm

• VLIES 100 VLIES 100 - Rothoblaas Barrier Membrane

• OSB3 Egger 18 mm

· Laminate floor

Terrazza

• Calculated designed in a mounting up pylons (the pylons and the

Preparation of the land is not included in price)

• Wooden timbered 150x45 mm C / 625 mm with fireproof treatment

• Anti-slip Deck 28 mm with self-treatment

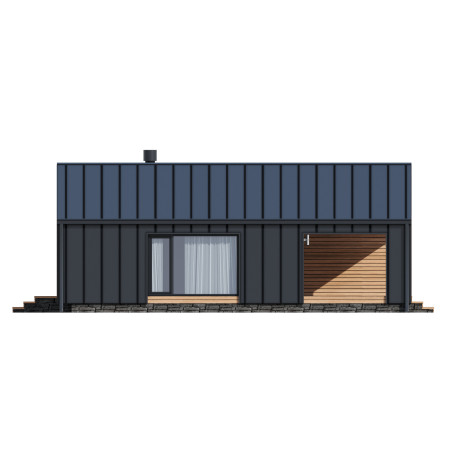

Side exterior wall  (from outside inland)

• Sandwich panel 30 mm

• Rastrel Ignifugo Treatment  28x45 mm

• UV membrane 210 Zenit Rothoblaas

• OSB3 EGGER 12 mm

• Wooden timbered 150x45 mm C / 625 mm with fireproof treatment

• Knauff mineral wool unifit035-150 mm

• Vapor barrier Vlies 100 Rothoblaas (Mounted in factory)

• Ravel with fireproof treatment 28x45 mm

• Laminated plaster plate Omnia 15, thickness of 15 mm

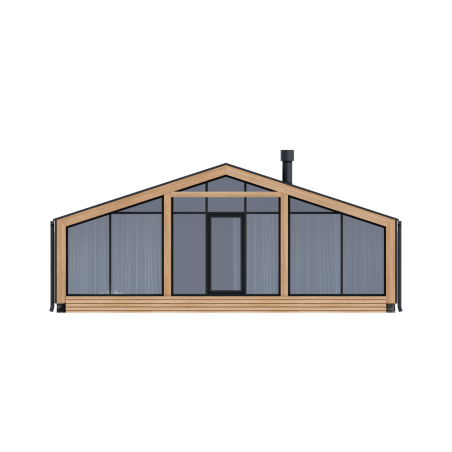

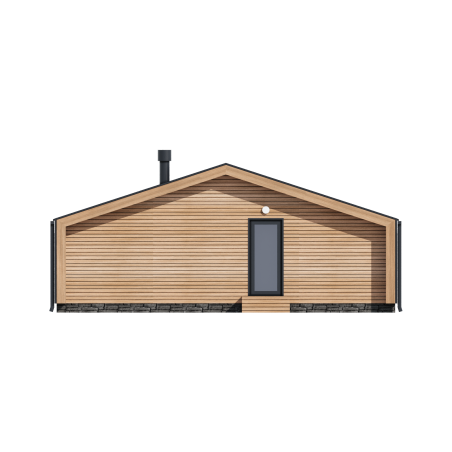

Rear wall, front (from outside inland)

•

Wood Effect Fachadas Coating  - Zero maintenance

• Treaty Rastrel 28x45 mm

• UV membrane 210 Zenit Rothoblaas

• OSB3 EGGER 12 mm

• Wooden timbered 150x45 mm C / 625 mm with fireproof treatment

• Knauff mineral wool unifit035-150 mm

• Vapor barrier Vlies 100 Rothoblaas (Mounted in factory)

• Ravel with fireproof treatment 28x45 mm

•

Gypsum plate laminated Omnia 15, thickness of 15 mm

Interior wall

• Laminated plaster plate Omnia 15, thickness of 15 mm

• Ravel with fireproof treatment 28x45 mm

• OSB3 EGGER 12 mm Curring

• Wooden timbered 100x45 mm C / 625 mm with Ignifugo Treatment

• Isolation with acoustic mineral wool Akustic Board Knauf

• Vapor barrier Vlies 100 Rothoblaas

• Ravel with fireproof treatment 28x45 mm

• Laminated plaster plate Omnia 15, thickness of 15 mm

The ceiling House (from inside out)

• Laminated beams without impregnation 60x120 mm

• Lamina 19 mm fir without impregnation

• VLIES 100 VLIES 100 - Rothoblaas Barrier Membrane

• Rastrel 150x45 mm for treatment with treatment

• Knauff mineral wool unifit035-150 mm

• Membrane Antilluvia Rothoblass Transpir 110

• OSB3 EGGER 15 mm

• Metallic cover

• For the zone of the isolation therazza do not blare on the ceiling

Carpentry

• Solid wood interior door, with colorless varnish

• Outer door + PVC windows  anthracite

Wood

• Species Wood: Fir or pine, origin Nordic countries Sweden,

Finland, certified material PEFC, FSC, C24 resistance class

SR at 14081-1 + A1: 2011

• Wood is evaluated and verified CE and meets the requirements SR in 14081-

1 + A1: 2011

• GL24 Certificate - Glued Laminated Timber and Glyd Solid Timber SR

EN 14080: 2013 (EN 14080: 2013)

• Thermal treatment by controlled drying, 24% drying percentage +/- 2%

Treatments applied to wood

• Autoclave treatment - deep treatment for the next wood

In contact with the concrete slab - with substances with homologations

European CSN 490600-1 and CSN EC 599-1.

• Ignifugo treatment that gives fire resistance and protection against

Insects and Mushrooms - Bochamit Anti Flash - EN 351 - BOCHEMIE WOOD CARE

Enclating system

• Rothoblae fixing and anchoring systems

• Full thread connector, with rothoblaas VGS head of 11x150 hexagonal

• CARABINES WASP Rothoblass that raise a maximum 1300 kilos, according to Directive

EC 2006/42

• For the manufacture of the lightweight frame structure nails are used

Alsafix brand (France), automatically nailed from the control machine

CNC number, according to French regulations NF P21-203 (1,2,3) - DU31.2, 31: 3,

EuroCode 5 Yes EN14592: 2008 + A1: 2012

Price does not include concrete pylons, crane (crane price depends on delivery location)  and hosting costs of the equipment assemblers.
