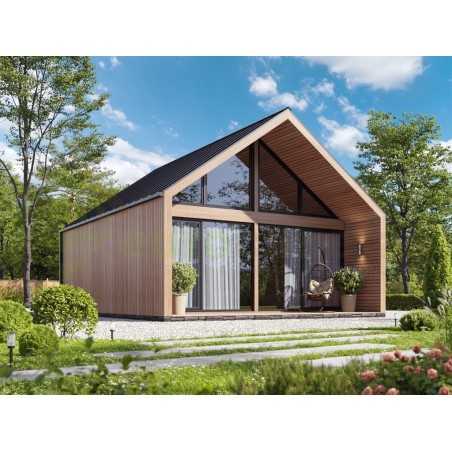

Barnyhouse "Rhodes, 70 m2" with Altillo

House

• Calculated designed in a mounting up pylons (the pylons and the

Land preparation is not included in the price)

• Bytum AS750 Rothoblaas

• OSB3 EGGER 15 mm

• Wooden timbered 150x45 mm C / 625 mm with fireproof treatment

• Knauff mineral wool unifit035-150 mm

• VLIES 100 VLIES 100 - Rothoblaas Barrier Membrane

• OSB3 EGGER 15 mm

· Laminate floor

Terrazza

• Calculated designed in a mounting up pylons (the pylons and the

Land preparation is not included in the price)

• Wooden timbered 150x45 mm C / 625 mm with fireproof treatment

• 28 mm anti-slip decking with self-locking treatment

Outer wall (from outside inland)

• Wood Effect Facade Coating - Zero Maintenance

• Rastrel 28x45 mm

• UV membrane 210 Zenit Rothoblaas

• OSB3 EGGER 12 mm

• Wooden timbered 150x45 mm C / 625 mm with fireproof treatment

• Knauff mineral wool unifit035-150 mm

• Vapor barrier Vlies 100 Rothoblaas

• Ravel with fireproof treatment 28x45 mm

• Laminated plaster plate Omnia 15, thickness of 15 mm

Interior wall

• Laminated plaster plate Omnia 15, thickness of 15 mm

• Ravel with fireproof treatment 28x45 mm

• OSB3 EGGER 12 mm Curring

• Wooden timbered 100x45 mm C / 625 mm with Ignifugo Treatment

• Isolation with acoustic mineral wool Akustic Board Knauf

• Vapor barrier Vlies 100 Rothoblaas

• Ravel with fireproof treatment 28x45 mm

•

Gypsum plate laminated Omnia 15, thickness of 15 mm

Exterior wall terrace  non-insulated

•

Wood Effect Facade Coating - Zero Maintenance

• Treaty Rastrel 28x45 mm

• UV membrane 210 Zenit Rothoblaas

• OSB3 EGGER 12 mm

• Wooden timbered 150x45 mm C / 625 mm with fireproof treatment

• OSB3 EGGER 12 mm

• UV membrane 210TT Rothoblaas

• Treaty Rastrel 28x45 mm

•

Wood Effect Facade Coating - Zero Maintenance

Floors

• Laminated view beams with impregnation a hand of impregnation

• 40 mm fir wood floor with a hand of impregnation

• Wooden handrail with a hand of impregnation

• Rustic wooden staircase, with straded rodanes with a hand of

impregnaccion

Roof House + Terrace

• Lamin 19 mm fir tree with a hand of impregnation

• VLIES 100 VLIES 100 - Rothoblaas Barrier Membrane

• Solid beams with fireproof treatment

• Knauff mineral wool unifit035-150 mm

• OSB3 EGGER 15 mm

• Membrane Antilluvia Rothoblass Transpir 110

Carpentry

• Solid wood interior door, with colorless varnish

• Outer door + PVC windows  anthracite

Wood

• Species Wood: Fir or pine, origin Nordic countries Sweden,

Finland, certified material PEFC, FSC, C24 resistance class

SR at 14081-1 + A1: 2011

• Wood is evaluated and verified CE and meets the requirements SR in 14081-

1 + A1: 2011

• GL24 Certificate - Glued Laminated Timber and Glyd Solid Timber SR

EN 14080: 2013 (EN 14080: 2013)

• Thermal treatment by controlled drying, 24% drying percentage +/- 2%

Treatments applied to wood

• Autoclave treatment - deep treatment for the next wood

In contact with the concrete slab - with substances with homologations

European CSN 490600-1 and CSN EC 599-1.

• Ignifugo treatment that gives fire resistance and protection against

Insects and Mushrooms - Bochamit Anti Flash - EN 351 - BOCHEMIE WOOD CARE

Enclating system

• Rothoblae fixing and anchoring systems

• Full thread connector, with rothoblaas VGS head of 11x150 hexagonal

• CARABINES WASP Rothoblass that raise a maximum 1300 kilos, according to Directive

EC 2006/42

• For the manufacture of the lightweight frame structure nails are used

Alsafix brand (France), automatically nailed from the control machine

CNC number, according to French regulations NF P21-203 (1,2,3) - DU31.2, 31: 3,

EuroCode 5 Yes EN14592: 2008 + A1: 2012

Price does not include concrete pylons, crane (crane price depends on delivery location)  and hosting costs of the equipment assemblers.
